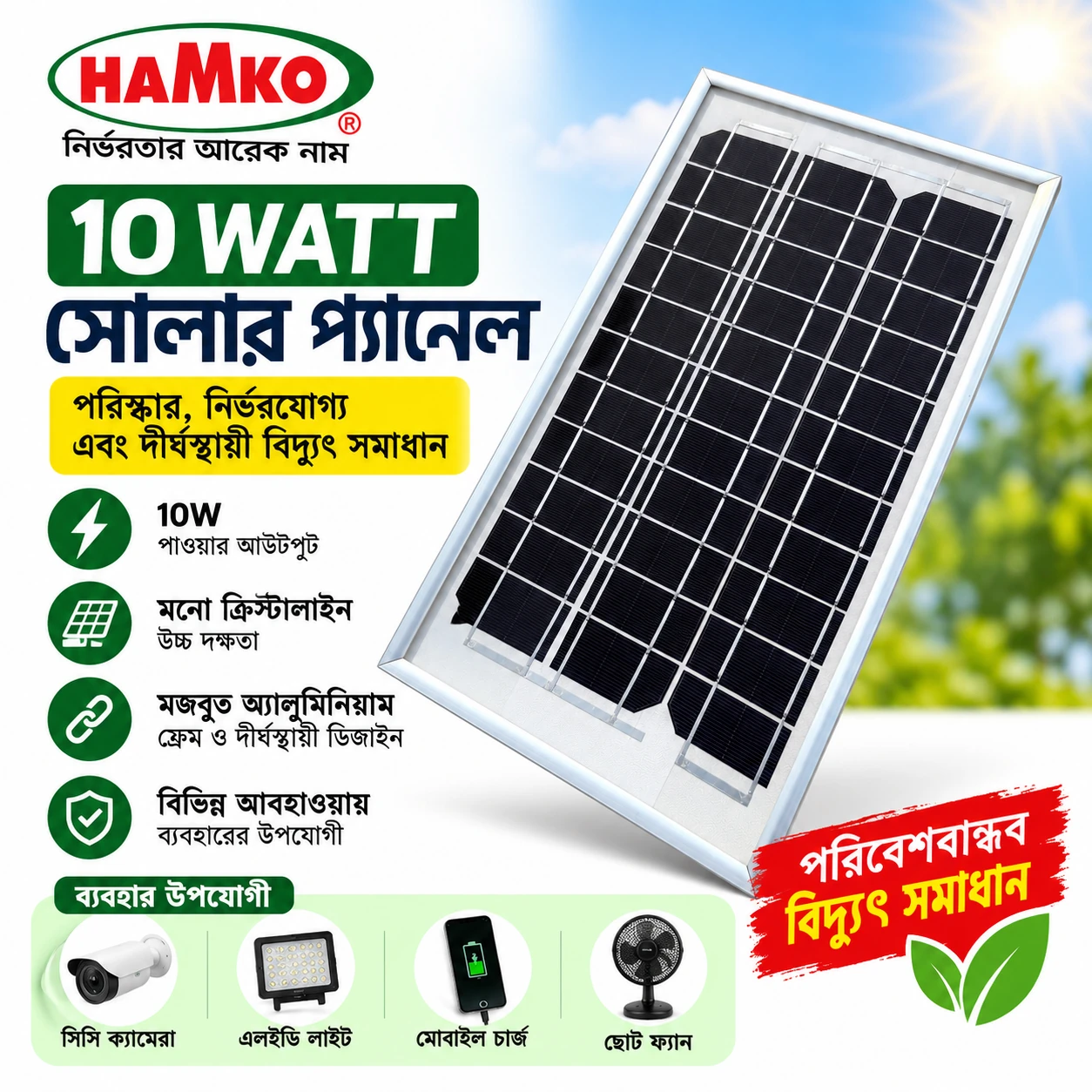

Hamko 10W Mono Solar Panel – MS-36M-10 High Efficiency Solar PV Module

The Hamko 10W Mono Solar Panel (MS-36M-10) is a compact and efficient solar PV module designed for small-scale solar applications. With a 10W maximum power output, this lightweight panel is suitable for powering and charging small DC devices such as LED lights, small fans, CCTV systems, battery charging setups, and other low-power applications.

Its compact 410 × 190 × 25 mm design and 0.9 kg weight make it easy to install and handle. The panel delivers up to 18.1V at maximum power and features a maximum system voltage of 1000VDC.

Key Features

Brand: Hamko Solar

Model: MS-36M-10

Maximum Power: 10W

Solar Cell Type: Mono

Voltage at Maximum Power (Vmp): 18.1V

Current at Maximum Power (Imp): 0.553A

Open Circuit Voltage (Voc): 21.6V

Short Circuit Current (Isc): 0.62A

Module Dimensions: 410 × 190 × 25 mm

Weight: 0.9 kg

Maximum System Voltage: 1000VDC

Product Application: Class A

Tested According to: IEC 61215 & IEC 61730

Certification Markings: CE, IEC, TÜV InterCert

Suitable For

CCTV camera power systems

Small LED lighting

Small DC fans

Battery charging

Small solar projects

DIY solar applications

12V battery-based systems
